Kubernetes运维之容器编排Deployment动态扩缩容

HPA简介

官方文档 | Kubernetes

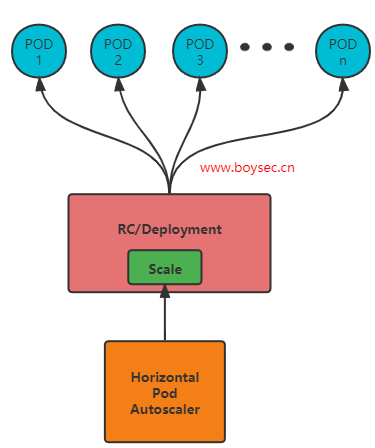

HPA（Horizontal Pod Autoscaler）的实现是一个控制循环，由controller manager的–horizontal-pod-autoscaler-sync-period参数指定周期（默认值为15秒）。每个周期内，controller manager根据每个HorizontalPodAutoscaler定义中指定的指标查询资源利用率。controller manager可以从resource metrics API（pod 资源指标）和custom metrics API（自定义指标）获取指标。

• 对于每个pod的资源指标（如CPU），控制器从资源指标API中获取每一个 HorizontalPodAutoscaler指定的pod的指标，然后，如果设置了目标使用率，控制器获取每个pod中的容器资源使用情况，并计算资源使用率。如果使用原始值，将直接使用原始数据（不再计算百分比）。然后，控制器根据平均的资源使用率或原始值计算出缩放的比例，进而计算出目标副本数。需要注意的是，如果pod某些容器不支持资源采集，那么控制器将不会使用该pod的CPU使用率
• 如果 pod 使用自定义指标，控制器机制与资源指标类似，区别在于自定义指标只使用原始值，而不是使用率。
• 如果pod 使用对象指标和外部指标（每个指标描述一个对象信息）。这个指标将直接跟据目标设定值相比较，并生成一个上面提到的缩放比例。在autoscaling/v2beta2版本API中，这个指标也可以根据pod数量平分后再计算。通常情况下，控制器将从一系列的聚合API（metrics.k8s.io、custom.metrics.k8s.io和external.metrics.k8s.io）中获取指标数据。metrics.k8s.io API通常由 metrics-server（需要额外启动）提供。

准备开始

metrics-server是一个集群范围内的资源数据集和工具，同样的，metrics-server也只是显示数据，并不提供数据存储服务，主要关注的是资源度量API的实现，比如CPU、文件描述符、内存、请求延时等指标，metric-server收集数据给k8s集群内使用，如kubectl,hpa,scheduler等，请参考 metrics-server 文档 。

准备资源配置清单

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
    rbac.authorization.k8s.io/aggregate-to-admin: "true"
    rbac.authorization.k8s.io/aggregate-to-edit: "true"
    rbac.authorization.k8s.io/aggregate-to-view: "true"
  name: system:aggregated-metrics-reader
rules:
- apiGroups:
  - metrics.k8s.io
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
rules:
- apiGroups:
  - ""
  resources:
  - pods
  - nodes
  - nodes/stats
  - namespaces
  - configmaps
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server-auth-reader
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server:system:auth-delegator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:metrics-server
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  ports:
  - name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  selector:
    matchLabels:
      k8s-app: metrics-server
  strategy:
    rollingUpdate:
      maxUnavailable: 0
  template:
    metadata:
      labels:
        k8s-app: metrics-server
    spec:
      containers:
      - args:
        - --cert-dir=/tmp
        - --secure-port=4443
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --kubelet-use-node-status-port
        - --metric-resolution=15s
        - --kubelet-insecure-tls
        image: wangxiansen/metrics-server:v0.5.2
        imagePullPolicy: IfNotPresent
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /livez
            port: https
            scheme: HTTPS
          periodSeconds: 10
        name: metrics-server
        ports:
        - containerPort: 4443
          name: https
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /readyz
            port: https
            scheme: HTTPS
          initialDelaySeconds: 20
          periodSeconds: 10
        resources:
          requests:
            cpu: 100m
            memory: 200Mi
        securityContext:
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 1000
        volumeMounts:
        - mountPath: /tmp
          name: tmp-dir
      nodeSelector:
        kubernetes.io/os: linux
      priorityClassName: system-cluster-critical
      serviceAccountName: metrics-server
      volumes:
      - emptyDir: {}
        name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  labels:
    k8s-app: metrics-server
  name: v1beta1.metrics.k8s.io
spec:
  group: metrics.k8s.io
  groupPriorityMinimum: 100
  insecureSkipTLSVerify: true
  service:
    name: metrics-server
    namespace: kube-system
  version: v1beta1
  versionPriority: 100

填坑过程

问题一

启动metrics server报证书错误：x509: cannot validate certificate for x.x.x.x because it doesn’t contain any IP SANs” node=”k8s-master1”

Failed probe” probe=”metric-storage-ready” err=”no metrics to serve”

解决：

# 添加参数(二选一)
         - --kubelet-insecure-tls
# 或者(二选一)
         - --tls-cert-file=/opt/kubernetes/ssl/ca.pem
         - --tls-private-key-file=/opt/kubernetes/ssl/pki/ca-key.pem

问题二：

metrics server 一直未ready，查看日志报错：Failed to scrape node” err=”Get "https://x.x.x.x:10250/metrics/resource\“: context deadline exceeded” scraper.go:140] “Failed to scrape node” err=”Get "https://k8s-node1:10250/metrics/resource\“: context deadline exceeded” node=”linshi-k8s-54”
server.go:187] “Failed probe” probe=”metric-storage-ready” err=”no metrics to serve”

解决：

保持--kubelet-preferred-address-types和apiserver一致

问题三

使用kubectl top nodes报错：

Error from server (Forbidden): nodes.metrics.k8s.io is forbidden: User “kubernetes” cannot list resource “nodes” in API group “metrics.k8s.io” at the cluster scope

解决：

报错提示为RBAC权限问题，给kubernetes用户授权如下：

cat /opt/kubernetes/cfg/apiserver-to-kubelet-rbac.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - "*"
    resources:
      - nodes   # 新增
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
      - pods/log
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kubernetes

资源配置清单

kubectl apply -f metrics.yml

执行命令查看

[root@k8s-master1 ~]# kubectl top node
NAME          CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
k8s-master1   197m         9%     1158Mi          61%
k8s-node1     104m         5%     880Mi           46%
k8s-node2     103m         5%     767Mi           40%
[root@k8s-master1 ~]# kubectl top pods -A
NAMESPACE     NAME                                         CPU(cores)   MEMORY(bytes)
kube-system   coredns-5b5b4cb755-mhtwl                     5m           14Mi
kube-system   dashboard-metrics-scraper-65cc6d887d-c26b2   1m           4Mi
kube-system   kubernetes-dashboard-757b689f8b-fkkt6        1m           36Mi
kube-system   metrics-server-6b8679546c-7d7zz              5m           15Mi
kube-system   traefik-ingress-controller-9dj29             7m           29Mi
kube-system   traefik-ingress-controller-bvtgx             6m           19Mi
kube-system   traefik-ingress-controller-dv9rd             6m           17Mi

动态扩缩容

制作docker镜像

为了演示 Horizontal Pod Autoscaler，我们将使用一个基于 php-apache 镜像的 定制 Docker 镜像。

Dockerfileindex.php

FROM php:5-apache
COPY index.php /var/www/html/index.php
RUN chmod a+rx index.php

<?php
  $x = 0.0001;
  for ($i = 0; $i <= 1000000; $i++) {
    $x += sqrt($x);
  }
  echo "OK!";
?>

准备资源配置文件

vim php-apache.yml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: php-apache
spec:
  selector:
    matchLabels:
      run: php-apache
  replicas: 1
  template:
    metadata:
      labels:
        run: php-apache
    spec:
      containers:
      - name: php-apache
        image: wangxiansen/php-hpa
        ports:
        - containerPort: 80
        resources:
          limits:
            cpu: 500m
          requests:
            cpu: 200m
---
apiVersion: v1
kind: Service
metadata:
  name: php-apache
  labels:
    run: php-apache
spec:
  ports:
  - port: 80
  selector:
    run: php-apache

运行下面的命令：

kubectl apply -f php-apache.yml

创建 Horizontal Pod Autoscaler

HPA的API有三个版本，通过kubectl api-versions | grep autoscal可看到

autoscaling/v1

autoscaling/v2beta1

autoscaling/v2beta2

• autoscaling/v1只支持基于CPU指标的缩放；
• autoscaling/v2beta1支持Resource Metrics（资源指标，如pod的CPU）和Custom Metrics（自定义指标）的缩放；
• autoscaling/v2beta2支持Resource Metrics（资源指标，如pod的CPU）和Custom Metrics（自定义指标）和ExternalMetrics（额外指标）的缩放。

以下命令将创建一个 Horizontal Pod Autoscaler 用于控制我们上一步骤中创建的 Deployment，使 Pod 的副本数量维持在 1 到 10 之间。 大致来说，HPA 将（通过 Deployment）增加或者减少 Pod 副本的数量以保持所有 Pod 的平均 CPU 利用率在 50% 左右（由于每个 Pod 请求 200 毫核的 CPU，这意味着平均 CPU 用量为 100 毫核）。

[root@k8s-master1 ~]# kubectl autoscale deployment php-apache --cpu-percent=50 --min=1 --max=10
horizontalpodautoscaler.autoscaling/php-apache autoscaled

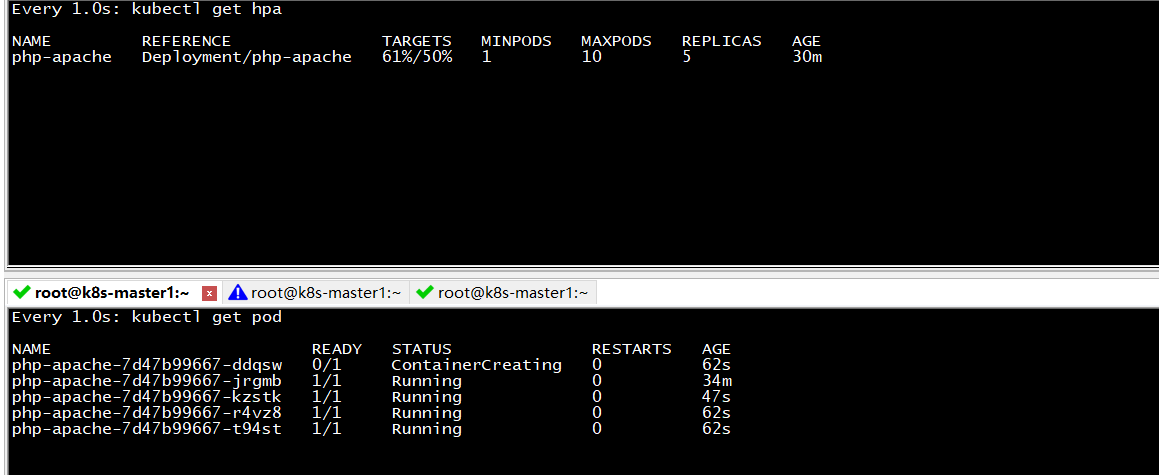

我们可以通过以下命令查看 Autoscaler 的状态：

[root@k8s-master1 ~]# kubectl get hpa
NAME         REFERENCE               TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
php-apache   Deployment/php-apache   <unknown>/50%   1         10        0          6s

获取yaml

[root@k8s-master1 ~]# kubectl autoscale deployment php-apache --cpu-percent=50 --min=1 --max=10 --dry-run=client -o yaml
apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  name: php-apache
spec:
  maxReplicas: 10
  minReplicas: 1
  scaleTargetRef:                         # 将要扩展的目标引用
    apiVersion: apps/v1
    kind: Deployment
    name: php-apache
  targetCPUUtilizationPercentage: 50      # cpu使用超过50%就扩容，低于就缩容。

增加负载压测

kubectl run -i --tty load-generator --rm --image=busybox --restart=Never -- /bin/sh -c "while sleep 0.01; do wget -q -O- http://php-apache; done"
# 或
[root@k8s-master1 ~]# kubectl get svc
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   192.168.0.1      <none>        443/TCP   14h
php-apache   ClusterIP   192.168.115.15   <none>        80/TCP    44m
[root@k8s-master1 ~]# while true; do sleep 0.01; curl 192.168.115.15; done

HPA 将自动缩减时间默认5min。

金丝雀部署

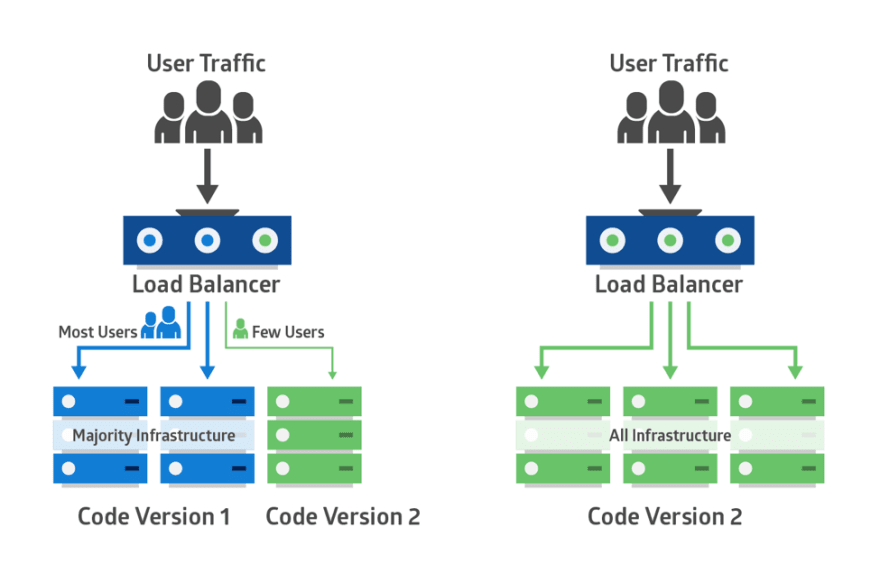

金丝雀发布一般是先发1台机器，或者一个小比例，例如2%的服务器，主要做流量验证用，也称为金丝雀 (Canary) 测试，国内常称灰度测试。以前旷工下矿前，会先放一只金丝雀进去用于探测洞里是否有有毒气体，看金丝雀能否活下来，金丝雀发布由此得名。简单的金丝雀测试一般通过手工测试验证，复杂的金丝雀测试需要比较完善的监控基础设施配合，通过监控指标反馈，观察金丝雀的健康状况，作为后续发布或回退的依据。如果金丝测试通过，则把剩余的 V1 版本全部升级为 V2 版本。如果金丝雀测试失败，则直接回退金丝雀，发布失败。

实现金丝雀部署

主要步骤：

1. 部署v1版本的应用，此时service访问的都是v1版本的服务
2. 部署v2版本，数量为x/10，同时缩小v1版本的数量x/10，此时有x/10的流量到v2版本的服务
3. 逐步缩小v1，扩大v2，最终v2版本替换全部的v1

搭建模拟的服务

apiVersion: v1
kind: Service
metadata:
  name: my-app
  labels:
    app: my-app
spec:
  type: NodePort
  ports:
  - name: http
    port: 80
    targetPort: http
  selector:
    app: my-app
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app-v1
  labels:
    app: my-app
spec:
  replicas: 4
  selector:
    matchLabels:
      app: my-app
      version: v1.0.0
  template:
    metadata:
      labels:
        app: my-app
        version: v1.0.0
    spec:
      containers:
      - name: my-app
        image: containersol/k8s-deployment-strategies
        ports:
        - name: http
          containerPort: 8080
        - name: probe
          containerPort: 8086
        env:
        - name: VERSION
          value: v1.0.0
        livenessProbe:
          httpGet:
            path: /live
            port: probe
          initialDelaySeconds: 5
          periodSeconds: 5
        readinessProbe:
          httpGet:
            path: /ready
            port: probe
          periodSeconds: 5

应用资源配置清单

[root@k8s-master1 ~]# kubectl apply -f appv1.yml --record
[root@k8s-master1 ~]# kubectl get pod
NAME                          READY   STATUS    RESTARTS   AGE
my-app-v1-84ff7f48cc-c7lzl    1/1     Running   0          2m39s
my-app-v1-84ff7f48cc-wgclp    1/1     Running   0          2m39s
[root@k8s-master1 ~]# kubectl get svc my-app
NAME     TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
my-app   NodePort   192.168.26.251   <none>        80:31501/TCP   4m18s

验证

[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v1-84ff7f48cc-wgclp, Version: v1.0.0

应用使用金丝雀部署方式来升级

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app-v2
  labels:
    app: my-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: my-app
      version: v2.0.0
  template:
    metadata:
      labels:
        app: my-app
        version: v2.0.0
    spec:
      containers:
      - name: my-app
        image: containersol/k8s-deployment-strategies
        ports:
        - name: http
          containerPort: 8080
        - name: probe
          containerPort: 8086
        env:
        - name: VERSION
          value: v2.0.0
        livenessProbe:
          httpGet:
            path: /live
            port: probe
          initialDelaySeconds: 5
          periodSeconds: 5
        readinessProbe:
          httpGet:
            path: /ready
            port: probe
          periodSeconds: 5

应用资源

[root@k8s-master1 ~]# kubectl apply -f appv2.yml --record
deployment.apps/my-app-v2 created

此时可以看到，my-app-v2启动了1个

[root@k8s-master1 ~]# kubectl get --watch deployment
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
my-app-v1    4/4     2            2           8m14s
my-app-v2    1/1     1            1           60s

升级验证

此时，这样通过service的负载均衡，my-app-v2会承接到%10（1/5）的流量

[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v2-dfdff8845-89m2d, Version: v2.0.0
[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v1-84ff7f48cc-d9tvz, Version: v1.0.0
[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v1-84ff7f48cc-cgs57, Version: v1.0.0
[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v1-84ff7f48cc-c7lzl, Version: v1.0.0
[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v1-84ff7f48cc-wgclp, Version: v1.0.0
[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v1-84ff7f48cc-wgclp, Version: v1.0.0
[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v2-dfdff8845-89m2d, Version: v2.0.0

验证通过后，我们逐步将my-app-v2扩容到5个，将my-app-v1缩小到0个

kubectl scale --replicas=5 deploy my-app-v2
kubectl delete deploy my-app-v1

再次验证服务，会发现my-app-v2承接了所有流量:

[root@k8s-master1 ~]# curl 192.168.26.251
Host: my-app-v2-dfdff8845-89m2d, Version: v2.0.0
