kubernetes安装Prometheus监控集群状态

Prometheus介绍

Prometheus（普罗米修斯）是一个最初在SoundCloud上构建的监控系统，自2012年成为社区开源项目，拥有非常活跃的开发人员和用户社区，为强调开源及独立维护，Prometheus于2016年加入CNCF，成为继kubernetes之后的第二个托管项目。
官方网站

Prometheus特点

  • 多维数据模型： 由度量名称和键值对标识的时间序列数据
  • 内置时间序列数据库：TSDB
  • promQL: 一种灵活的查询语言，可以利用多维数据完成复杂查询
  • 基于HTTP的pull（拉取）方式采集时间序列数据（exporter）
  • 同时支持PushGateway组件收集数据
  • 通过服务发现或静态配置发现目标
  • 多种图形模式及仪表盘支持
  • 支持做为数据源接入Grafana

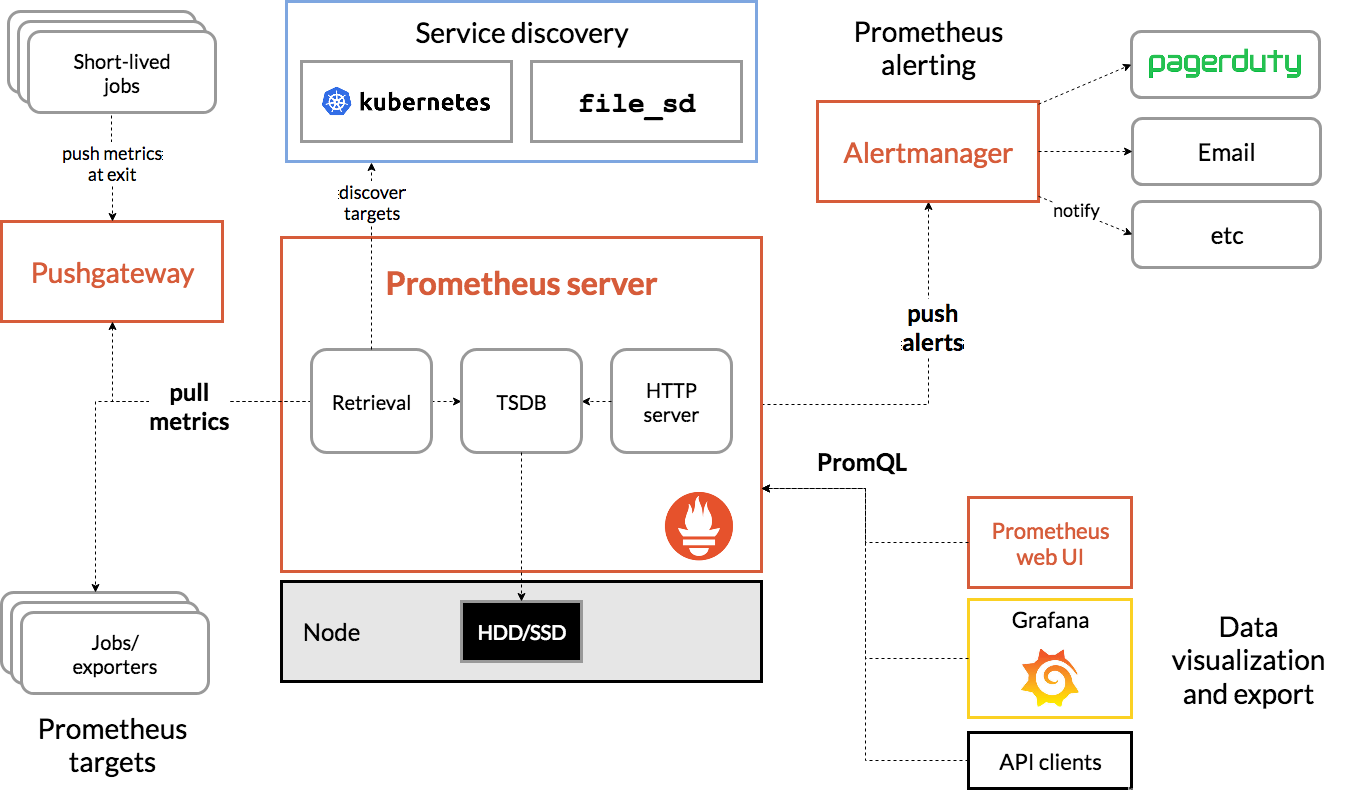

Prometheus架构

Exporters(可以自定义开发)

  • http接口
  • 定义监控项和监控项的标签（维度）
  • 按一定的数据结构组织监控数据
  • 以时间序列被收集

Prometheus Server

  • Retrieve（数据收集器）
  • TSDB（时间序列数据库）
  • Configure （static_config、 kubernetes_sd、 file_sd）
  • HTTP Server

Grafana

  • 多种多样的插件
  • 数据源（Prometheus）
  • Dashboard（PromQL）

Alertmanager

  • rules.yml (PromQL)

Prometueus与zabbix对比

Prometheuszabbix
后端golang开发，定制化难度较低后端用C开发，界面用PHP开发，定制化难度很高
更适合云环境的监控，尤其对K8S支持更好更适合监控物理机、虚拟机环境
监控数据存储在基于时间序列的数据库内，便于对已有数据进行新的聚合监控数据存储在关系型数据库内，很难从现有数据中扩展维度
自身界面相对较弱，很多配置需要修改配置文件，但可以由grafana出图图形界面相对成熟，界面上基本能完成全部的配置操作
支持更大的集群规模，速度也更快集群规模上限为10000个节点
2015年后开始快速发展，社区活跃，适用场景越来越多发展时间更长，对于很多监控场景，都有现成的解决方案

Prometueus插件安装部署

Exporters安装

在运维主机k8s-dns.boysec.cn上：

作用：监控K8S基本运行状态

下载kube-state-metrics镜像：

1
2
3
docker pull quay.io/coreos/kube-state-metrics:v1.9.7
docker tag quay.io/coreos/kube-state-metrics:v1.9.7 harbor.od.com/public/kube-state-metrics:v1.9.7
docker push harbor.od.com/public/kube-state-metrics:v1.9.7

准备资源配置清单

1
2
[root@k8s-dns ~]# mkdir /var/k8s-yaml/kube-state-metrics
[root@k8s-dns ~]# cd /var/k8s-yaml/kube-state-metrics

vim /var/k8s-yaml/kube-state-metrics/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "2"
  labels:
    grafanak8sapp: "true"
    app: kube-state-metrics
  name: kube-state-metrics
  namespace: kube-system
spec:
  selector:
    matchLabels:
      grafanak8sapp: "true"
      app: kube-state-metrics
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        grafanak8sapp: "true"
        app: kube-state-metrics
    spec:
      containers:
      - name: kube-state-metrics
        image: harbor.od.com/public/kube-state-metrics:v1.9.7
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          name: http-metrics
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 5
      serviceAccountName: kube-state-metrics

vim /var/k8s-yaml/kube-state-metrics/rbac.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - secrets
  - nodes
  - pods
  - services
  - resourcequotas
  - replicationcontrollers
  - limitranges
  - persistentvolumeclaims
  - persistentvolumes
  - namespaces
  - endpoints
  verbs:
  - list
  - watch
- apiGroups:
  - policy
  resources:
  - poddisruptionbudgets
  verbs:
  - list
  - watch
- apiGroups:
  - extensions
  resources:
  - daemonsets
  - deployments
  - replicasets
  verbs:
  - list
  - watch
- apiGroups:
  - apps
  resources:
  - statefulsets
  verbs:
  - list
  - watch
- apiGroups:
  - batch
  resources:
  - cronjobs
  - jobs
  verbs:
  - list
  - watch
- apiGroups:
  - autoscaling
  resources:
  - horizontalpodautoscalers
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-state-metrics
subjects:
- kind: ServiceAccount
  name: kube-state-metrics
  namespace: kube-system

应用资源配置清单

在任意一台k8s运算节点执行：

1
2
[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/kube-state-metrics/rbac.yaml
[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/kube-state-metrics/deployment.yaml

node-exporter安装

作用：监控运算节点资源
采集机器（物理机、虚拟机、云主机等）的监控指标数据，能够采集到的指标包括CPU, 内存，磁盘，网络，文件数等信息

下载镜像

1
2
3
docker pull prom/node-exporter:v1.0.0
docker tag  prom/node-exporter:v1.0.0 harbor.od.com/public/node-exporter:v1.0
docker push harbor.od.com/public/node-exporter:v1.0

准备资源配置清单

1
2
[root@k8s-dns ]# mkdir /var/k8s-yaml/node-exporter
[root@k8s-dns ]# cd /var/k8s-yaml/node-exporter

vim /var/k8s-yaml/node-exporter/daemonset.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
kind: DaemonSet
apiVersion: apps/v1
metadata:
  name: node-exporter
  namespace: kube-system
  labels:
    daemon: "node-exporter"
    grafanak8sapp: "true"
spec:
  selector:
    matchLabels:
      daemon: "node-exporter"
      grafanak8sapp: "true"
  template:
    metadata:
      name: node-exporter
      labels:
        daemon: "node-exporter"
        grafanak8sapp: "true"
    spec:
      volumes:
      - name: proc
        hostPath:
          path: /proc
          type: ""
      - name: sys
        hostPath:
          path: /sys
          type: ""
      containers:
      - name: node-exporter
        image: harbor.od.com/public/node-exporter:v1.0
        imagePullPolicy: IfNotPresent
        args:
        - --path.procfs=/host_proc
        - --path.sysfs=/host_sys
        ports:
        - name: node-exporter
          hostPort: 9100
          containerPort: 9100
          protocol: TCP
        volumeMounts:
        - name: sys
          readOnly: true
          mountPath: /host_sys
        - name: proc
          readOnly: true
          mountPath: /host_proc
      hostNetwork: true

应用资源配置清单

在任意一台k8s运算节点执行：

1
[root@k8s-node01 ~]# kubectl apply -f http://k8s-yaml.od.com/node-exporter/daemonset.yaml

node-exporter监听端口：

1
2
[root@k8s-node01 ~]# netstat -lntup |grep 9100
tcp6       0      0 :::9100                 :::*                    LISTEN      19339/node_exporter

检查metrics服务

1
curl localhost:9100/metrics

cadvisor服务

作用：可以对节点机器上的资源及容器进行实时监控和性能数据采集，包括CPU使用情况、内存使用情况、网络吞吐量及文件系统使用情况

1
2
3
docker pull google/cadvisor:v0.28.3
docker tag 75f88e3ec333 harbor.od.com/public/cadvisor:v0.28.3
docker push harbor.od.com/public/cadvisor:v0.28.3

准备资源配置清单

1
2
[root@k8s-dns ~]# mkdir /var/k8s-yaml/cadvisor
[root@k8s-dns ~]# cd /var/k8s-yaml/cadvisor

vim /var/k8s-yaml/cadvisor/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: cadvisor
  namespace: kube-system
  labels:
    app: cadvisor
spec:
  selector:
    matchLabels:
      name: cadvisor
  template:
    metadata:
      labels:
        name: cadvisor
    spec:
      hostNetwork: true
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
      containers:
      - name: cadvisor
        image: harbor.od.com/public/cadvisor:v0.28.3
        imagePullPolicy: IfNotPresent
        volumeMounts:
        - name: rootfs
          mountPath: /rootfs
          readOnly: true
        - name: var-run
          mountPath: /var/run
        - name: sys
          mountPath: /sys
          readOnly: true
        - name: docker
          mountPath: /var/lib/docker
          readOnly: true
        ports:
          - name: http
            containerPort: 4194
            protocol: TCP
        readinessProbe:
          tcpSocket:
            port: 4194
          initialDelaySeconds: 5
          periodSeconds: 10
        args:
          - --housekeeping_interval=10s
          - --port=4194
      terminationGracePeriodSeconds: 30
      volumes:
      - name: rootfs
        hostPath:
          path: /
      - name: var-run
        hostPath:
          path: /var/run
      - name: sys
        hostPath:
          path: /sys
      - name: docker
        hostPath:
          path: /data/docker

应用资源配置清单

修改运算节点软连接
所有运算节点上：

1
2
mount -o remount,rw /sys/fs/cgroup/
ln -s /sys/fs/cgroup/cpu,cpuacct /sys/fs/cgroup/cpuacct,cpu

在任意一台k8s运算节点执行：

1
kubectl apply -f http://k8s-yaml.od.com/cadvisor/deployment.yaml

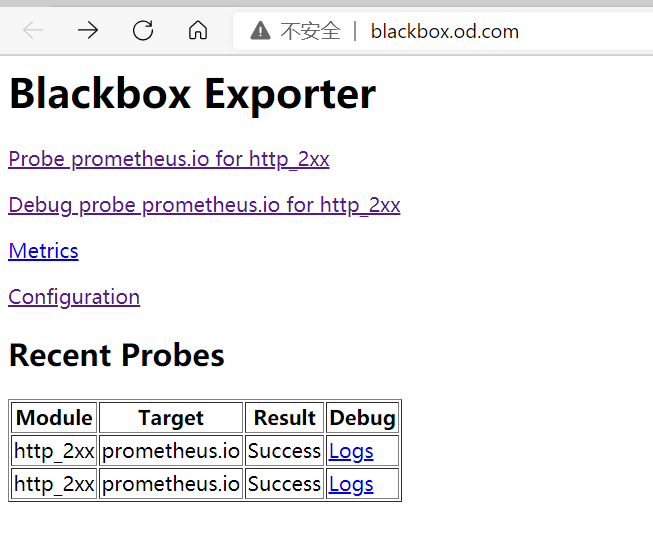

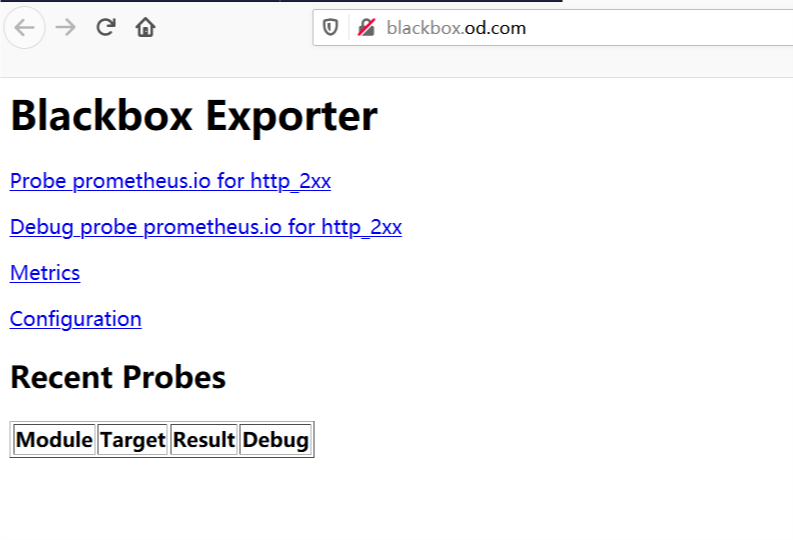

blackbox-exporter安装

作用:监控业务容器是否存活。

blackbox_exporter是Prometheus 官方提供的 exporter 之一，可以提供 http、dns、tcp、icmp 的监控数据采集。

1
2
3
docker pull prom/blackbox-exporter:v0.15.1
docker tag prom/blackbox-exporter:v0.15.1 harbor.od.com/public/blackbox-exporter:v0.15.1
docker push harbor.od.com/public/blackbox-exporter:v0.15.1

准备资源配置清单

1
2
[root@k8s-dns ~]# mkdir /var/k8s-yaml/blackbox-export
[root@k8s-dns ~]# cd /var/k8s-yaml/blackbox-export

vim /var/k8s-yaml/blackbox-export/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
kind: Deployment
apiVersion: apps/v1
metadata:
  name: blackbox-exporter
  namespace: kube-system
  labels:
    app: blackbox-exporter
  annotations:
    deployment.kubernetes.io/revision: "21"
spec:
  replicas: 1
  selector:
    matchLabels:
      app: blackbox-exporter
  template:
    metadata:
      labels:
        app: blackbox-exporter
    spec:
      volumes:
      - name: config
        configMap:
          name: blackbox-exporter
          defaultMode: 420
      containers:
      - name: blackbox-exporter
        image: harbor.od.com/public/blackbox-exporter:v0.15.1
        imagePullPolicy: IfNotPresent
        args:
        - --config.file=/etc/blackbox_exporter/blackbox.yml
        - --log.level=info
        - --web.listen-address=:9115
        ports:
        - name: blackbox-port
          containerPort: 9115
          protocol: TCP
        resources:
          limits:
            cpu: 200m
            memory: 256Mi
          requests:
            cpu: 100m
            memory: 50Mi
        volumeMounts:
        - name: config
          mountPath: /etc/blackbox_exporter
        readinessProbe:
          tcpSocket:
            port: 9115
          initialDelaySeconds: 5
          timeoutSeconds: 5
          periodSeconds: 10
          successThreshold: 1
          failureThreshold: 3

vim /var/k8s-yaml/blackbox-export/configmap.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    app: blackbox-exporter
  name: blackbox-exporter
  namespace: kube-system
data:
  blackbox.yml: |-
    modules:
      http_2xx:
        prober: http
        timeout: 2s
        http:
          valid_http_versions: ["HTTP/1.1", "HTTP/2"]
          valid_status_codes: [200,301,302]
          method: GET
          preferred_ip_protocol: "ip4"
      tcp_connect:
        prober: tcp
        timeout: 2s

vim /var/k8s-yaml/blackbox-export/svc.yaml

1
2
3
4
5
6
7
8
9
10
11
12
kind: Service
apiVersion: v1
metadata:
  name: blackbox-exporter
  namespace: kube-system
spec:
  selector:
    app: blackbox-exporter
  ports:
    - name: blackbox-port
      protocol: TCP
      port: 9115

vim /var/k8s-yaml/blackbox-export/ingress.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: blackbox-exporter
  namespace: kube-system
spec:
  rules:
  - host: blackbox.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: blackbox-exporter
          servicePort: blackbox-port

配置dns解析

1
2
3
vi /var/named/chroot/etc/od.com.zone
...
blackbox         A 10.1.1.50

应用资源配置清单

在任意一台k8s运算节点执行：

1
2
3
4
kubectl apply -f http://k8s-yaml.od.com/blackbox-export/configmap.yaml
kubectl apply -f http://k8s-yaml.od.com/blackbox-export/deployment.yaml
kubectl apply -f http://k8s-yaml.od.com/blackbox-export/svc.yaml
kubectl apply -f http://k8s-yaml.od.com/blackbox-export/ingress.yaml

浏览器访问：
http://blackbox.od.com/

部署Prometheus-server

下载镜像

1
2
3
docker pull prom/prometheus:v2.22.0
docker tag prom/prometheus:v2.22.0 harbor.od.com/infra/prometheus:v2.22.0
docker push harbor.od.com/infra/prometheus:v2.22.0

准备prometheus的配置文件

1
2
3
4
5
6
mkdir -pv /data/nfs-volume/prometheus/{etc,prom-db}
cd /data/nfs-volume/prometheus/etc/

cp /opt/certs/ca.pem .
cp -a /opt/certs/client.pem .
cp -a /opt/certs/client-key.pem .

prometheus配置文件

vim /data/nfs-volume/prometheus/etc/prometheus.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
global:
  scrape_interval:     15s
  evaluation_interval: 15s
scrape_configs:
- job_name: 'etcd'
  tls_config:
    ca_file: /data/etc/ca.pem
    cert_file: /data/etc/client.pem
    key_file: /data/etc/client-key.pem
  scheme: https
  static_configs:
  - targets:
    - '10.1.1.100:2379'
    - '10.1.1.110:2379'
    - '10.1.1.120:2379'
- job_name: 'kubernetes-apiservers'
  kubernetes_sd_configs:
  - role: endpoints
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  relabel_configs:
  - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
    action: keep
    regex: default;kubernetes;https
- job_name: 'kubernetes-pods'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'kubernetes-kubelet'
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __address__
    replacement: ${1}:10255
- job_name: 'kubernetes-cadvisor'
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __address__
    replacement: ${1}:4194
- job_name: 'kubernetes-kube-state'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
  - source_labels: [__meta_kubernetes_pod_label_grafanak8sapp]
    regex: .*true.*
    action: keep
  - source_labels: ['__meta_kubernetes_pod_label_daemon', '__meta_kubernetes_pod_node_name']
    regex: 'node-exporter;(.*)'
    action: replace
    target_label: nodename
- job_name: 'blackbox_http_pod_probe'
  metrics_path: /probe
  kubernetes_sd_configs:
  - role: pod
  params:
    module: [http_2xx]
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_blackbox_scheme]
    action: keep
    regex: http
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_blackbox_port,  __meta_kubernetes_pod_annotation_blackbox_path]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+);(.+)
    replacement: $1:$2$3
    target_label: __param_target
  - action: replace
    target_label: __address__
    replacement: blackbox-exporter.kube-system:9115
  - source_labels: [__param_target]
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'blackbox_tcp_pod_probe'
  metrics_path: /probe
  kubernetes_sd_configs:
  - role: pod
  params:
    module: [tcp_connect]
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_blackbox_scheme]
    action: keep
    regex: tcp
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_blackbox_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __param_target
  - action: replace
    target_label: __address__
    replacement: blackbox-exporter.kube-system:9115
  - source_labels: [__param_target]
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name

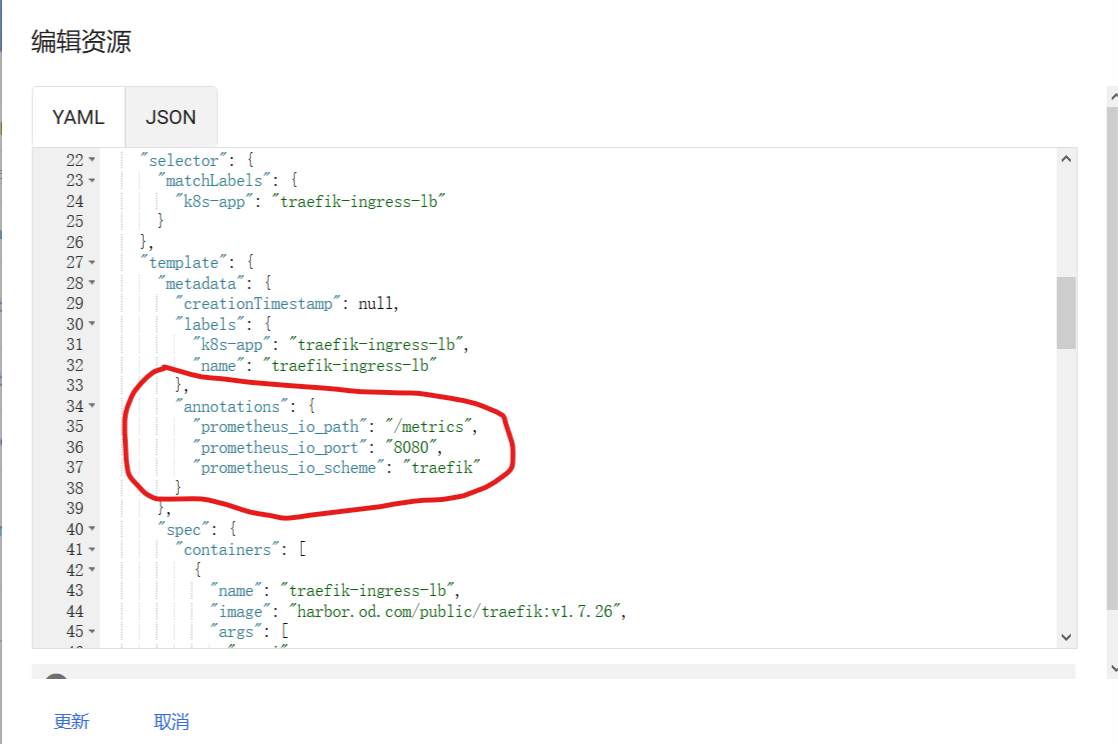

- job_name: 'traefik'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme]
    action: keep
    regex: traefik
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name

准备资源配置清单

1
2
[root@k8s-dns ]# mkdir /var/k8s-yaml/prometheus
[root@k8s-dns ]# cd /var/k8s-yaml/prometheus

vim /var/k8s-yaml/prometheus/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "5"
  labels:
    name: prometheus
  name: prometheus
  namespace: infra
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: prometheus
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      nodeName: k8s-node01
      containers:
      - name: prometheus
        image: harbor.od.com/infra/prometheus:v2.22.0
        imagePullPolicy: IfNotPresent
        command:
        - /bin/prometheus
        args:
        - --config.file=/data/etc/prometheus.yml
        - --storage.tsdb.path=/data/prom-db
        - --storage.tsdb.retention=72h
        - --storage.tsdb.min-block-duration=10m
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /data
          name: data
        resources:
          requests:
            cpu: "1000m"
            memory: "1.5Gi"
          limits:
            cpu: "2000m"
            memory: "3Gi"
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      serviceAccountName: prometheus
      volumes:
      - name: data
        nfs:
          server: k8s-dns
          path: /data/nfs-volume/prometheus

vim /var/k8s-yaml/prometheus/rbac.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
  namespace: infra
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
rules:
- apiGroups:
  - ""
  resources:
  - nodes
  - nodes/metrics
  - services
  - endpoints
  - pods
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - get
- nonResourceURLs:
  - /metrics
  verbs:
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus
subjects:
- kind: ServiceAccount
  name: prometheus
  namespace: infra

vim /var/k8s-yaml/prometheus/svc.yaml

1
2
3
4
5
6
7
8
9
10
11
12
apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: infra
spec:
  ports:
  - port: 9090
    protocol: TCP
    targetPort: 9090
  selector:
    app: prometheus

vim /var/k8s-yaml/prometheus/ingress.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: traefik
  name: prometheus
  namespace: infra
spec:
  rules:
  - host: prometheus.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: prometheus
          servicePort: 9090

配置DNS解析

1
2
3
vi /var/named/chroot/etc/od.com.zone
...
prometheus       A 10.1.1.50

应用资源配置清单

在任意一台k8s运算节点执行：

1
2
3
4
kubectl apply -f http://k8s-yaml.od.com/prometheus/rbac.yaml
kubectl apply -f http://k8s-yaml.od.com/prometheus/deployment.yaml
kubectl apply -f http://k8s-yaml.od.com/prometheus/svc.yaml
kubectl apply -f http://k8s-yaml.od.com/prometheus/ingress.yaml

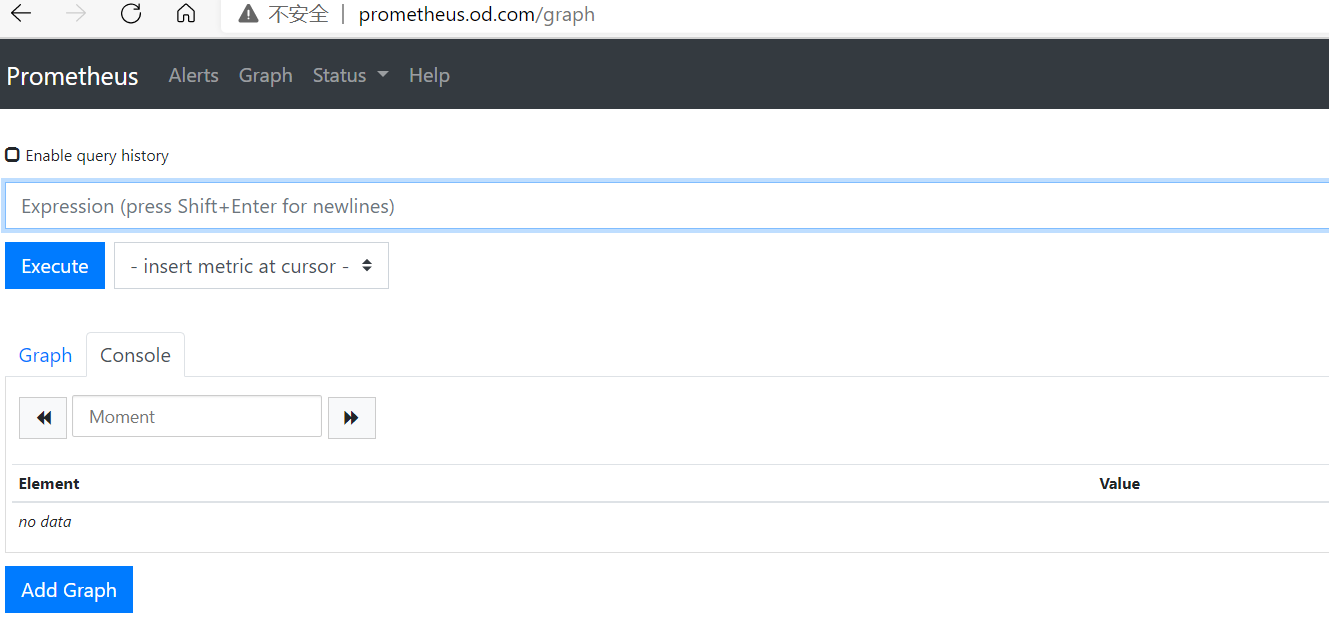

浏览器访问
http://prometheus.od.com

blackbox变化

blackbox 监控服务是否存活

在dubbo-demo-service控制器上加annotations，并重启pod，监控生效

TCP

1
2
3
4
"annotations": {
  "blackbox_port": "20880",
  "blackbox_scheme": "tcp"
}

http

1
2
3
4
5
"annotations": {
  "blackbox_path": "/hello?name=health",
  "blackbox_port": "8080",
  "blackbox_scheme": "http"
}

jvm

1
2
3
4
5
"annotations": {
  "prometheus_io_scrape": "true",
  "prometheus_io_port": "12346",
  "prometheus_io_path": "/"
}

小试牛刀-Prometheus监控traefik-ingress

在traefik的pod控制器上加annotations，并重启pod，监控生效

JSON修改方法：

1
2
3
4
5
"annotations": {
  "prometheus_io_scheme": "traefik",
  "prometheus_io_path": "/metrics",
  "prometheus_io_port": "8080"
}

YAML修改方法：

1
2
3
4
annotations:
  prometheus_io_path: /metrics
  prometheus_io_port: '8080'
  prometheus_io_scheme: traefik

修改DaemonSet

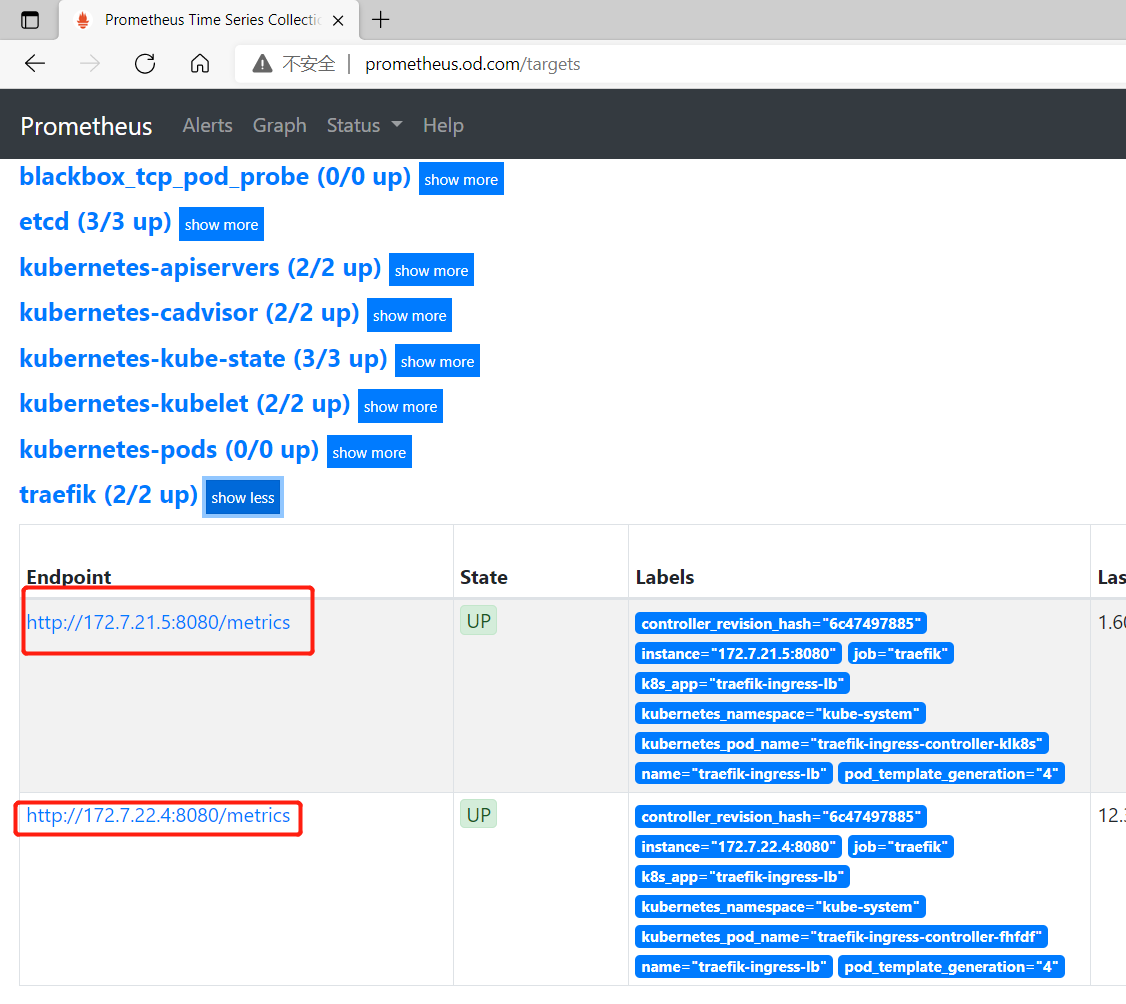

Prometheus查看
